DeltaV CTO DCS Cabinets

DeltaV™ CTO DCS Cabinets

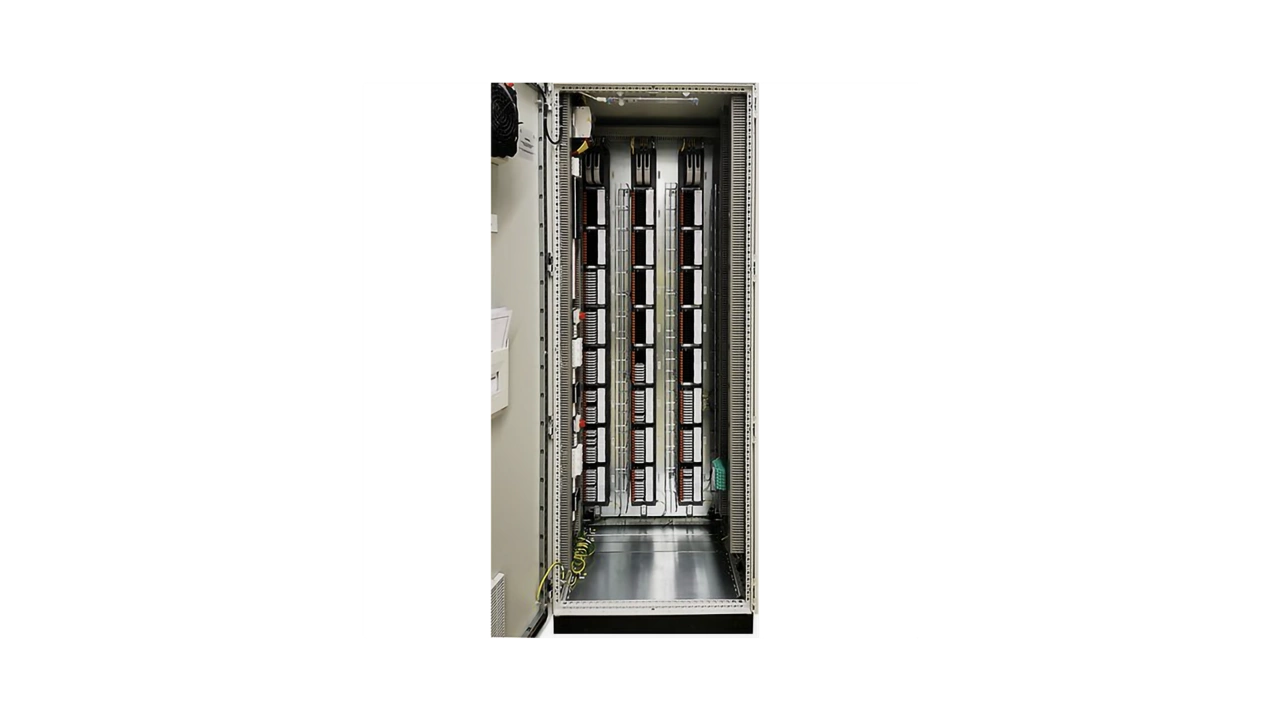

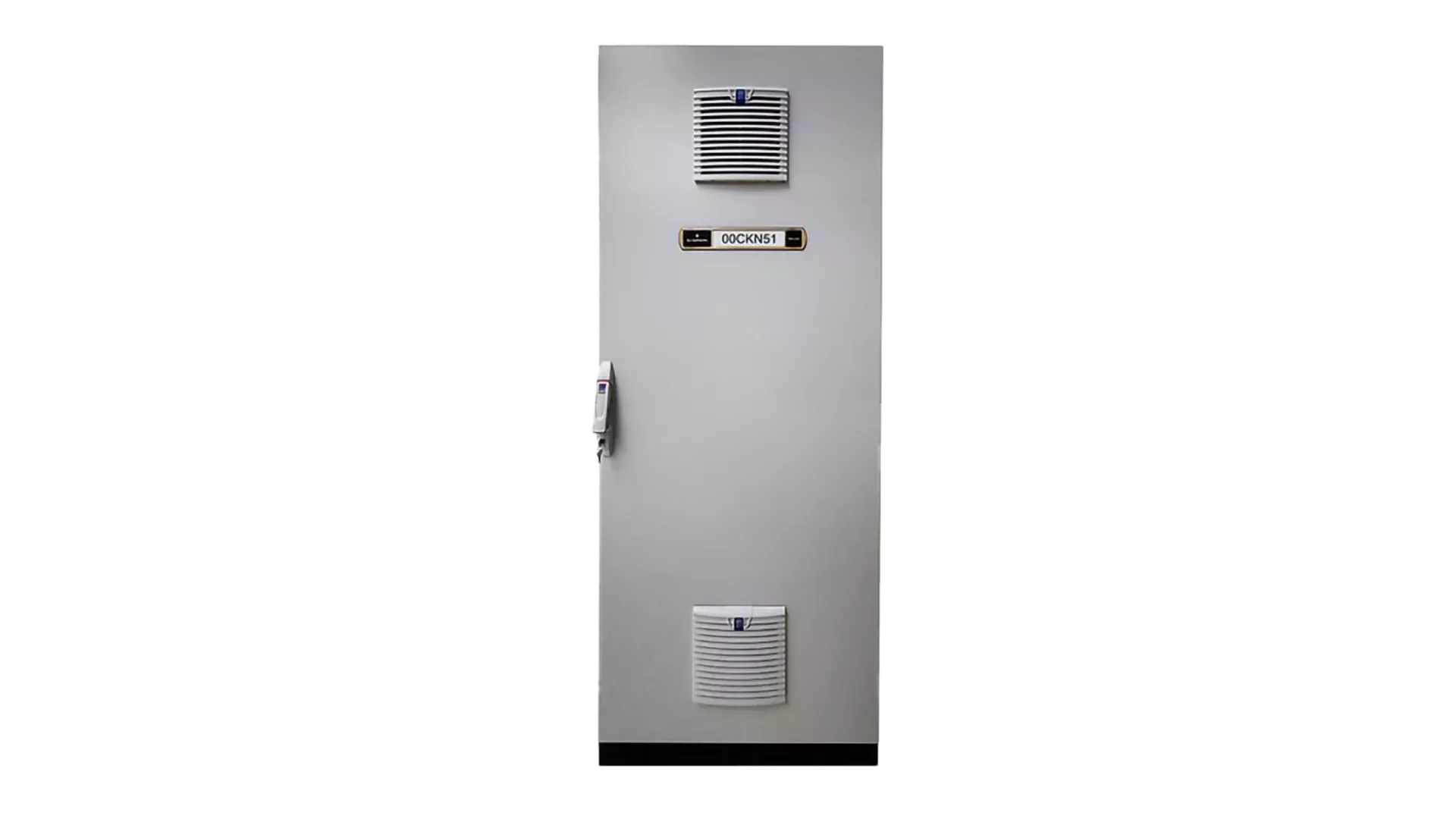

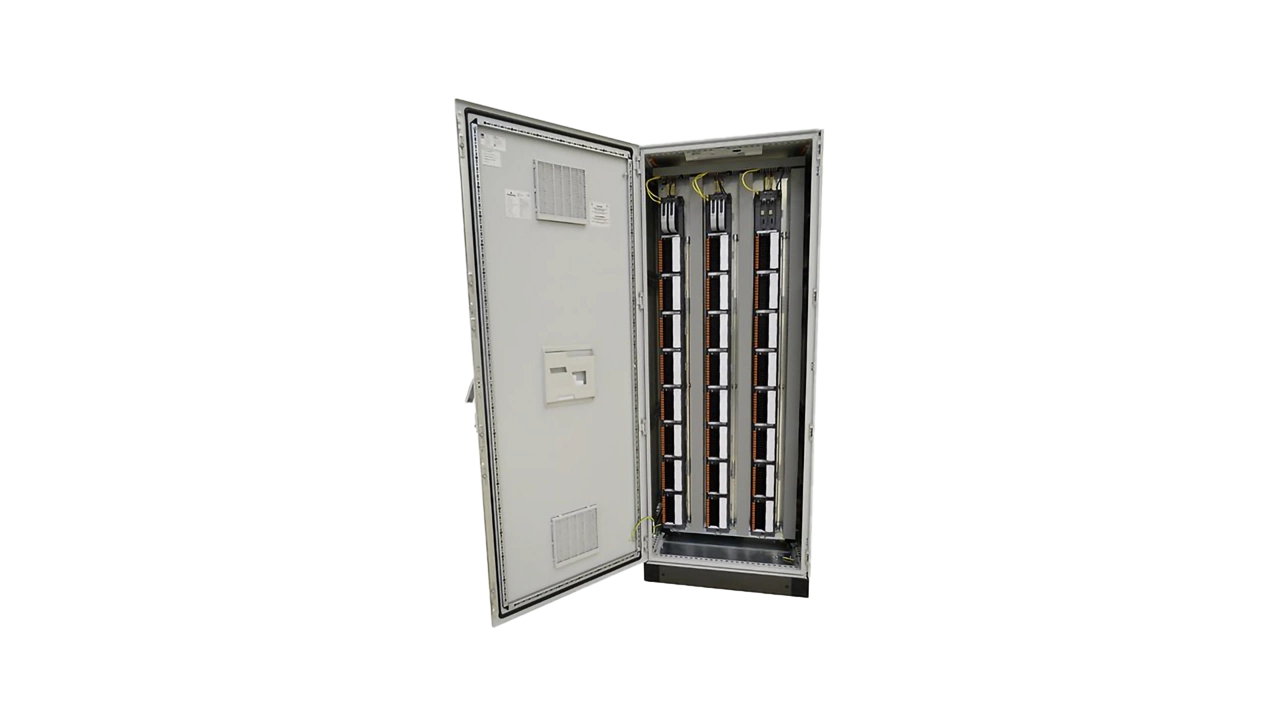

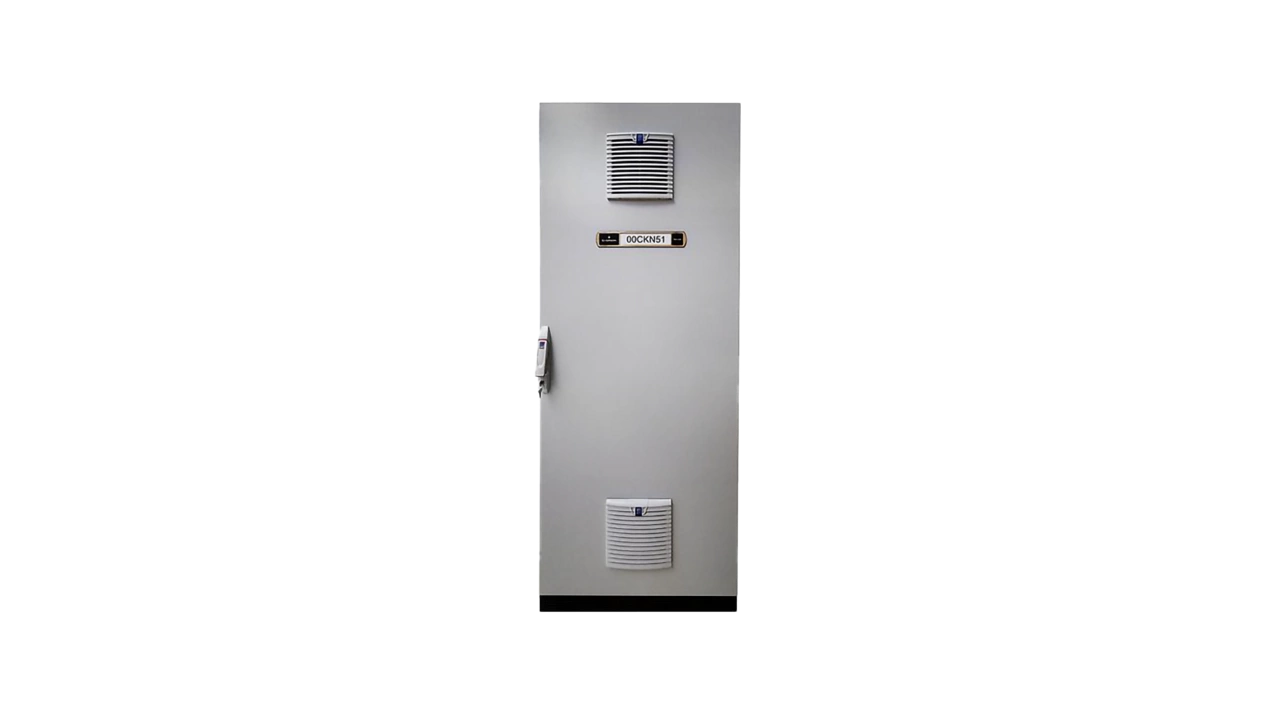

DeltaV CTO DCS Cabinets provide a pre-designed, off-the-shelf solution for DeltaV DCS CHARM I/O, S, M- series DCS system hardware, assembled in industry standard cabinets, ready to be installed on-site and connected to the field I/O. DeltaV CTO DCS Cabinets, are designed to meet ordinary location CSA marking (optional) and CE personal safety requirements to help facilitate site installation and inspection. They seamlessly integrate into the overall hardware solution of your DeltaV project.

Features

Delivers Electronic Marshalling enabled by CHARMs technology or controller cabinet for CHARM system
Fast delivery
Reduced system footprint
Significantly reduce cabinet design engineering
Fully documented package

Specifications


Dimensions	Charms and Controller Cabinets: 800mm (W) x 2000mm (H) (+100mm plinth) x 600mm (D) 800mm (W) x 2000mm (H) (+100mm plinth) x 800mm (D) Traditional IO Cabinets: 800mm (W) x 2000mm (H) (+100mm plinth) x 800mm (D) 1200mm (W) x 2000mm (H) (+100mm plinth) x 800mm (D) Data Cabinets: 800mm (W) x 2000mm (H) (+100mm plinth) x 800mm (D) 800mm (W) x 2000mm (H) (+100mm plinth) x 1000mm (D) 800mm (W) x 2000mm (H) x 1200mm (D)
Access	Front Access –Single Door, Right Hand Hinged, Push Button and Lock Insert Front and Rear Access – Single Door on Front and Rear, Right Hand Hinged, Push Button and Lock Insert Front and Rear Access –Double Door on Front and Rear, Push Button and Lock Insert
Protection Category	IP54, NEMA/ TYPE 12 IP20, NEMA/ TYPE 1 with vented doors
Weight	~200 kg (may vary as per hardware added by option selection)
Material	Cabinet Frame : Sheet Steel, 1.5 mm, Dipcoat-primed, Door: Sheet Steel, 2 mm, Dipcoat-primed, Powder-coated on the Outside, Textured Paint, Color: RAL 7035, Plinth RAL 9005
Door fans	Continuous run or with thermostat control
Cable entry	Bottom

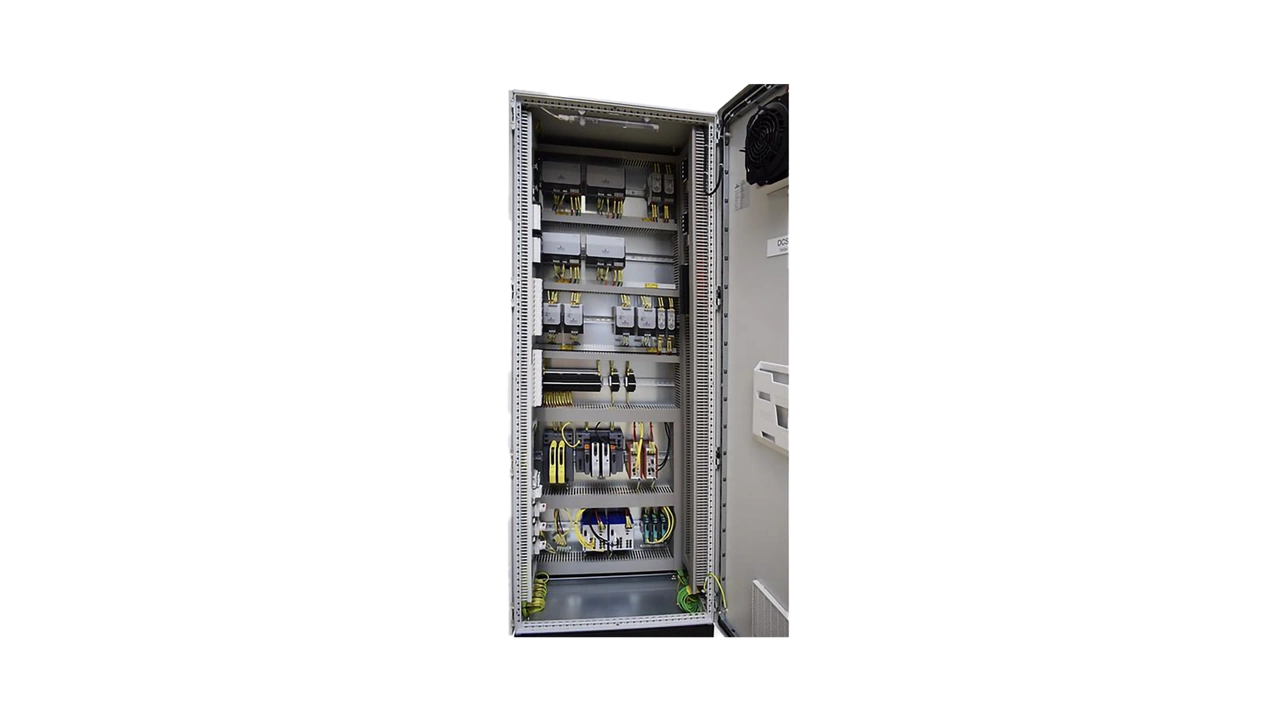

Power Requirements	Redundant distribution through Main Disconnect Switch: 100-120 VAC 50/60 Hz 220-240 VAC 50/60 Hz 24 V DC Configured with one of the following internal power supply systems: 2 x 20A and full redundant (primary and secondary) 24 VDC distribution 2 x 40A and full redundant (primary and secondary) 24 VDC distribution
Control Network	Redundant Copper (RJ45)

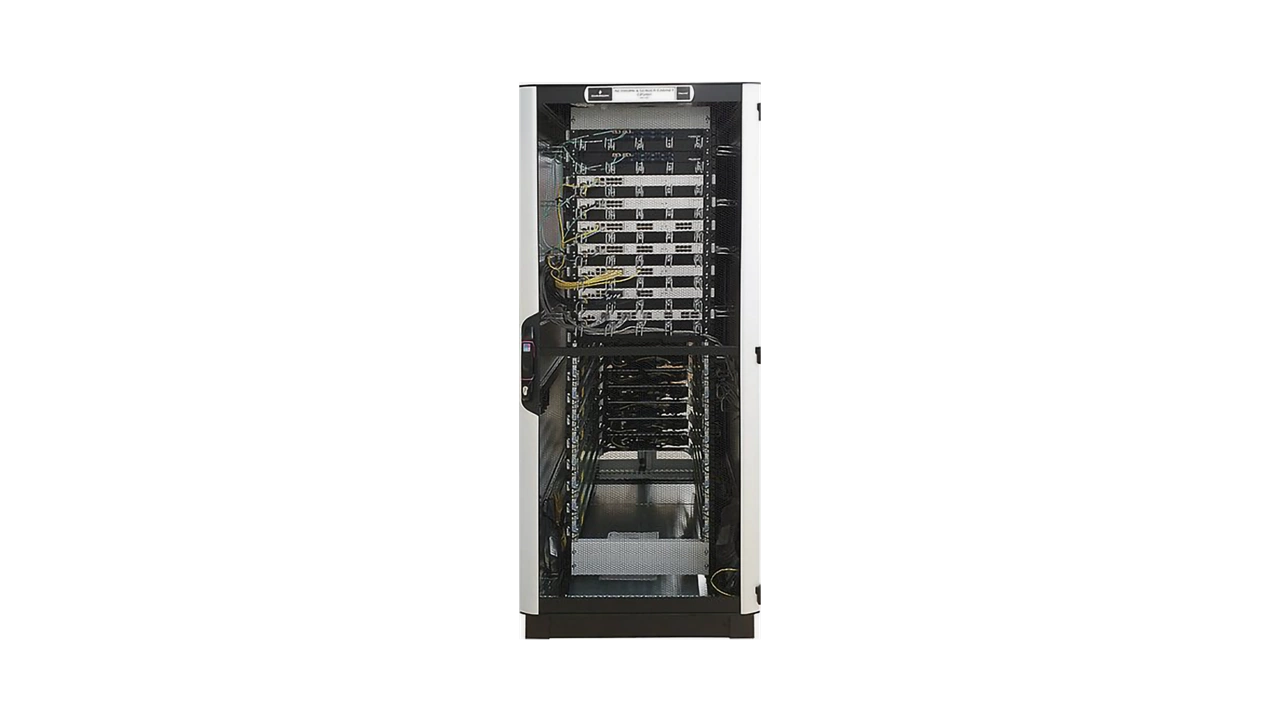

IO Count / Type	DeltaV DCS Charms Cabinets: Up to 504 IO AC powered CIOC Up to 576 IO DC powered CIOC DCS - CIOC with Non IS, IS IO CHARMs Controller Cabinets: Up to 288 CHARMS IO DCS - CIOC with Non IS, IS IO CHARMs Traditional IO DCS Cabinets: M Series DeltaV Traditional IO Hardware S Series DeltaV Traditional IO Hardware Data Cabinets: Network Cabinet Server/ Network Cabinet
Name Plate	Name Plate Holder with Nameplate Insert
Environmental Specification	Indoor installation Equipment Room - HVAC Controlled, Recommended temperature +25° C IT Room- Recommended temperature +20° C
Relative humidity	5-95% (non-condensing)
Globally Certified	Europe: CE North America: Ordinary Location (CSA Marking) - Optional
