DeltaV CTO SIS Cabinets

DeltaV™ CTO SIS Cabinets

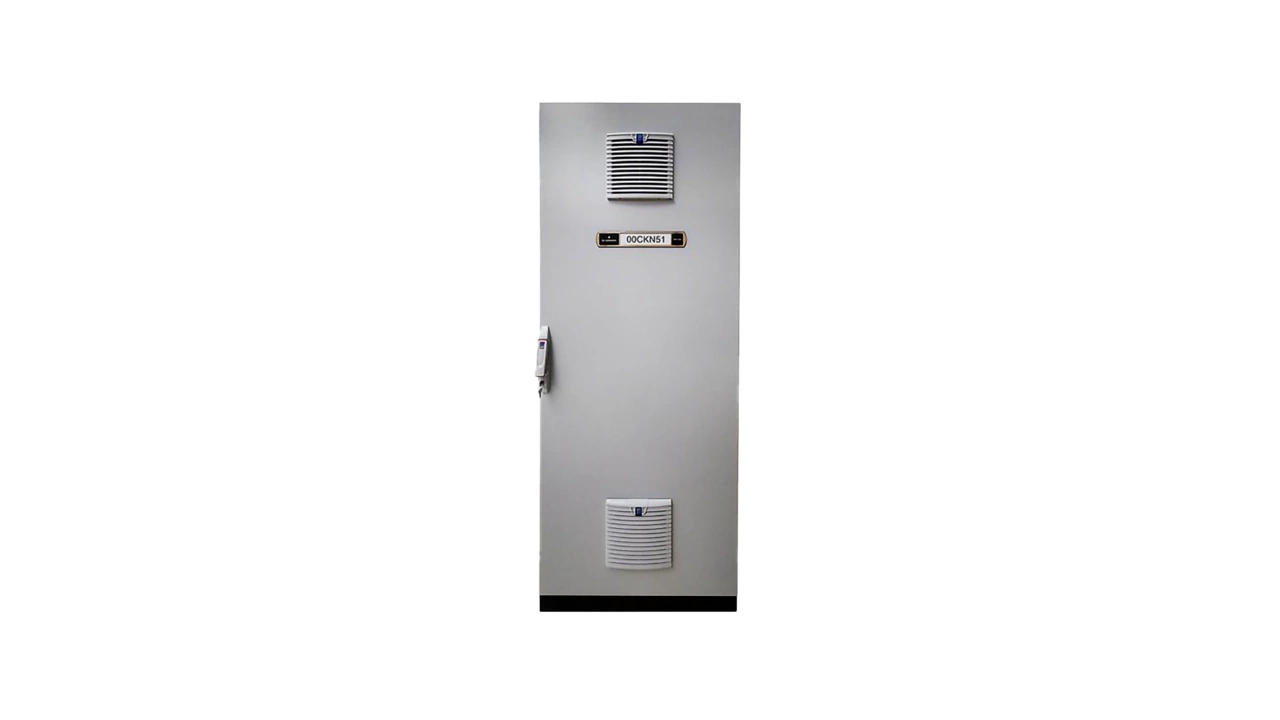

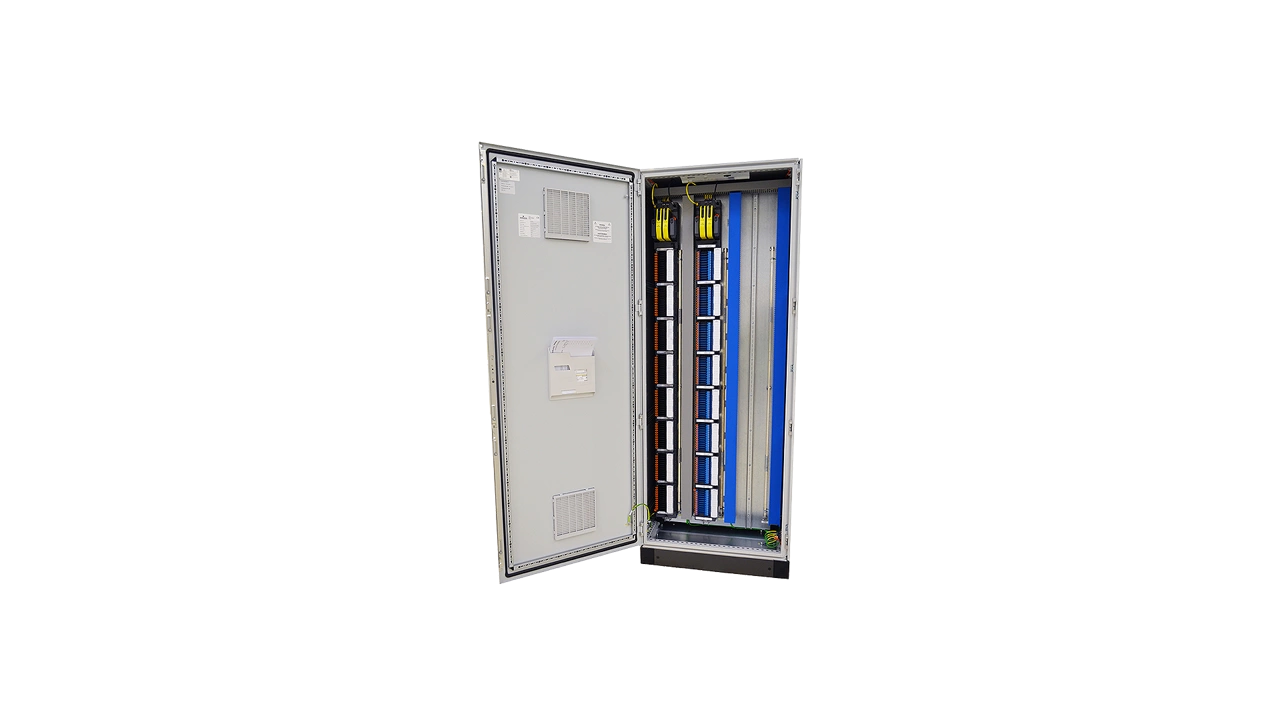

DeltaV CTO SIS Cabinets provide a pre-designed, off-the-shelf solution for DeltaV SIS LS CHARM I/O system, assembled in industry standard cabinets, ready to be installed on-site and connected to the field I/O. DeltaV CTO SIS Cabinets, are designed to meet ordinary location CSA marking (optional) and CE personal safety requirements to help facilitate site installation and inspection. They seamlessly integrate into the overall hardware solution of your DeltaV project.

Features

Delivers Electronic Marshalling enabled by CHARMs technology or controller cabinet for CHARM system
Fast delivery
Reduced system footprint
Significantly reduce cabinet design engineering
Fully documented package

Specifications


Dimensions	CHARMs and Controller Cabinets: 800mm (W) x 2000mm (H) (+100mm plinth) x 600mm (D) 800mm (W) x 2000mm (H) (+100mm plinth) x 800mm (D) Network / Server Cabinets: 800mm (W) x 2000mm (H) (+100mm plinth) x 800mm (D) 800mm (W) x 2000mm (H) (+100mm plinth) x 1000mm (D) 800mm (W) x 2000mm (H) (+100mm plinth) x 1200mm (D)
Access	Front Access – Single Door, Right Hand Hinged, Push Button and Lock Insert Front and Rear Access – Single Door on Front and Rear, Right Hand Hinged, Push Button and Lock Insert
Protection Category	IP54, NEMA/ TYPE 12 IP20, NEMA/ TYPE 1 with vented door
Weight	Front only Cabinet ~ 200kg Front Rear Cabinet ~ 300kg Network / Server Cabinet ~150kg (Empty Cabinet) (May vary as per hardware added by option selection)
Material	Cabinet Frame : Sheet Steel, 1.5 mm, Dipcoat-primed, Door: Sheet Steel, 2 mm, Dipcoat-primed, Powder-coated on the Outside, Textured Paint, System Cabinet Colour: RAL 7035, Plinth RAL 9005 Network/Server Cabinets Colour: RAL 7035 / RAL 9005, Plinth RAL 9005
Door fans	Continuous run or with thermostat control
Cable entry	Bottom

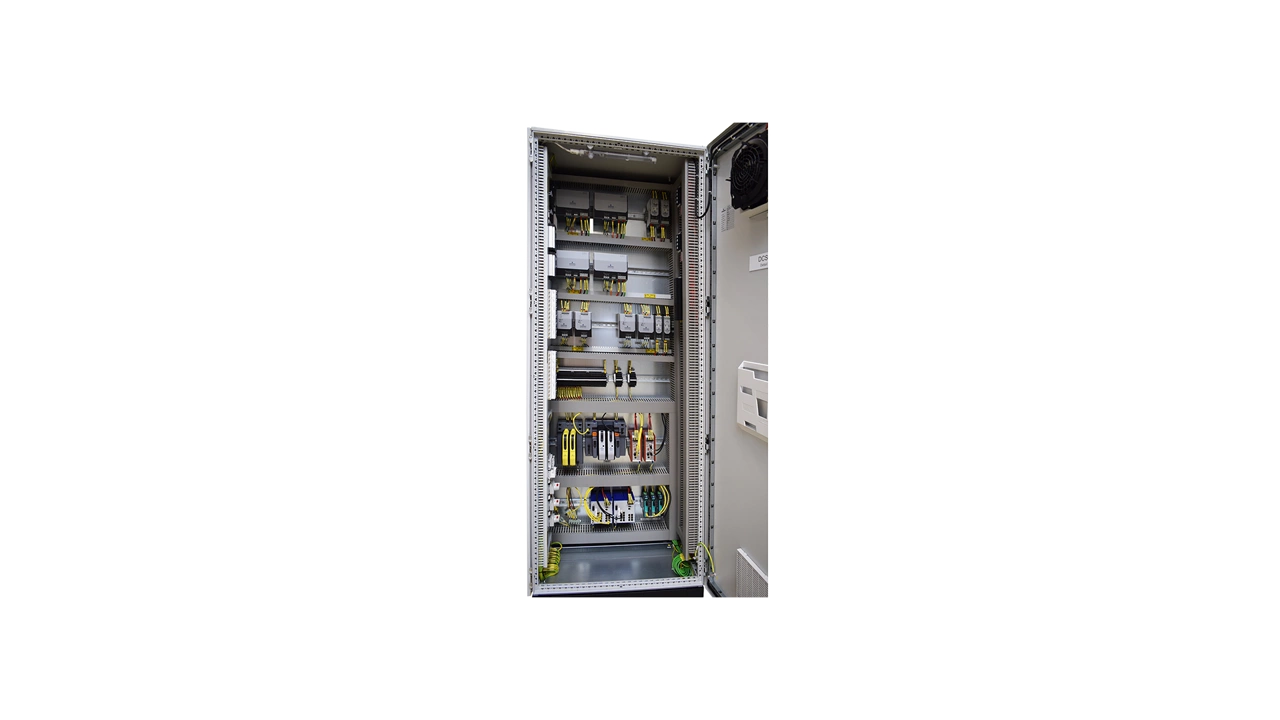

Power Requirements	Redundant distribution through Main Disconnect Switch: 100-120 VAC 50/60 Hz 220-240 VAC 50/60 Hz Configured with one of the following internal power supply systems: 2 x 20A and full redundant (primary and secondary) 24 VDC distribution 2 x 40A and full redundant (primary and secondary) 24 VDC distribution
Control Network	Redundant Copper (RJ45)

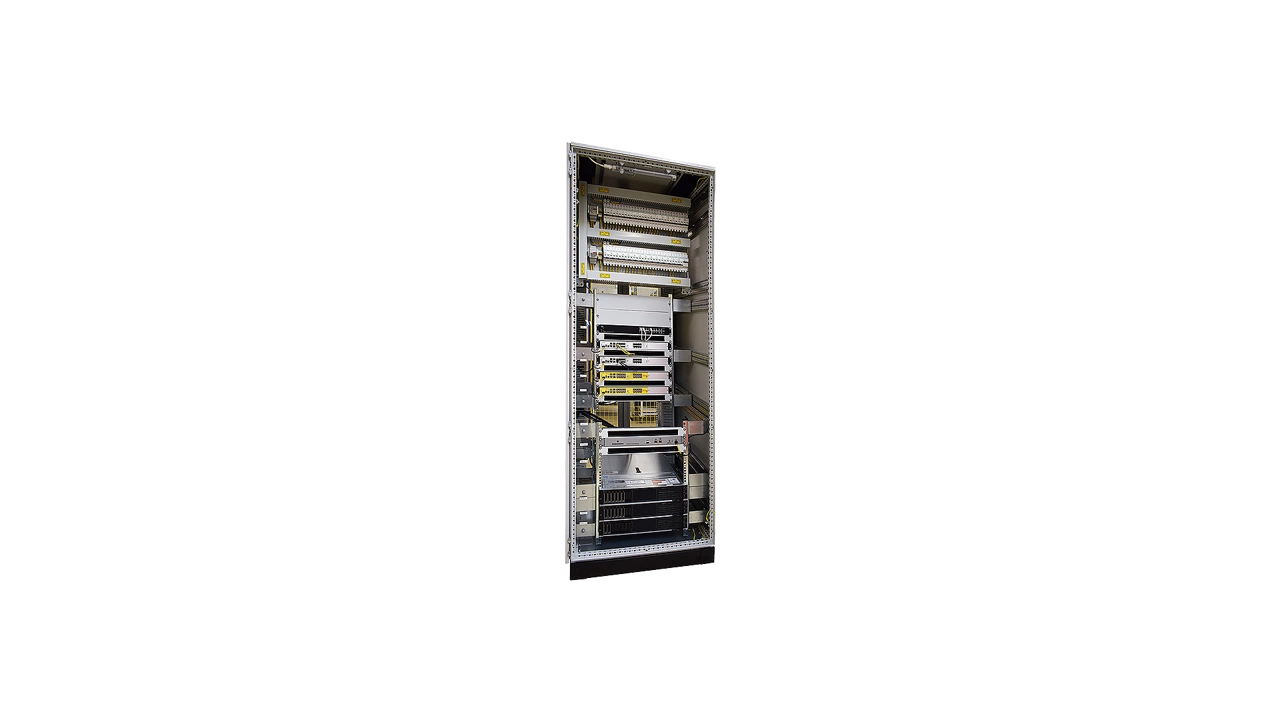

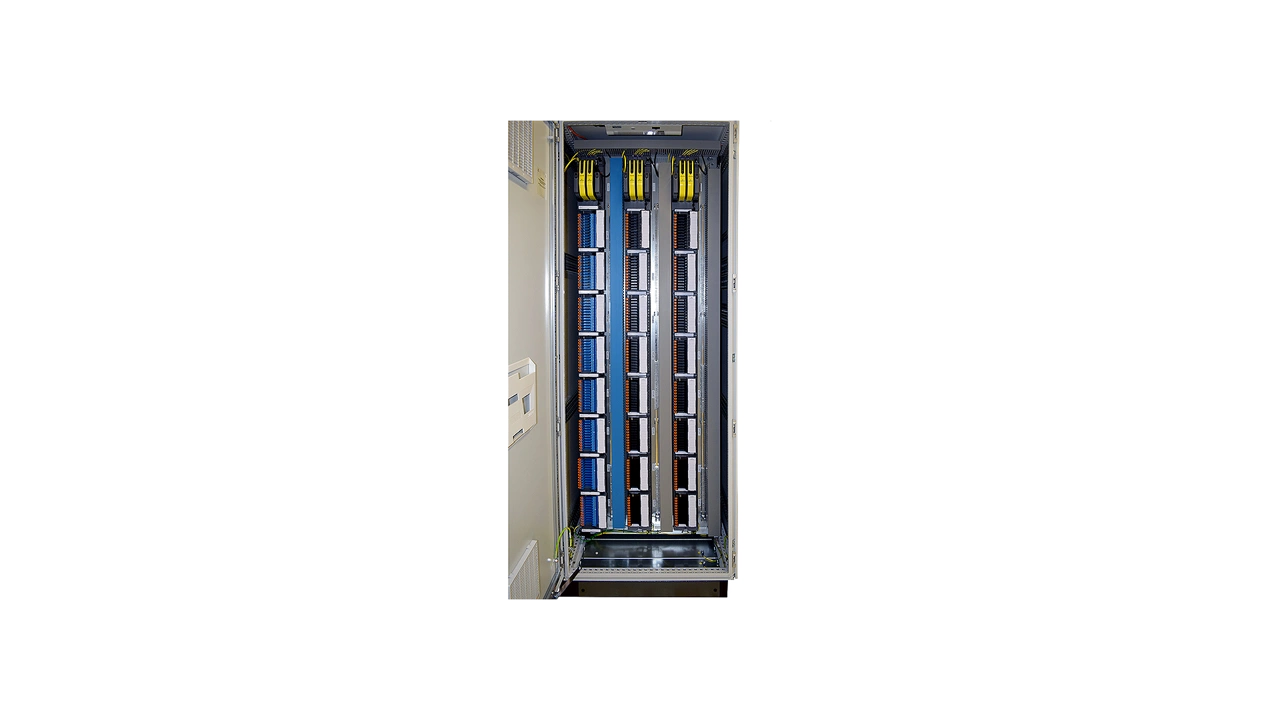

IO Count / Type	DeltaV SIS LS CHARMs Cabinets: Up to 480 LS IO AC powered CSLS SIS - CSLS with LS Non-IS, IS IO CHARMs Controller Cabinets: SIS - SZ Controller, LSNB Network / Server Cabinets: Network Cabinets Network / Server Cabinets
Name Plate	Name Plate Holder with Nameplate Insert
Environmental Specification	Indoor installation Equipment Room – HVAC Controlled, Recommended temperature +25° C (+77° F) IT Room – Recommended temperature +20° C (+68°
Relative humidity	5-95% (non-condensing)
Globally Certified	Europe: CE North America: Ordinary Location (CSA Marking) - Optional

Documents & Drawings

Product Data Sheet: CTO CSLS CHARM Cabinets (US/Canadian Standards) | DeltaV SIS

English671.3 KB.pdf09/04/23

Product Data Sheet: CTO CSLS CHARM Cabinets (European Standards) | DeltaV SIS

English1.2 MB.pdf03/25/24

Product Data Sheet: DeltaV CTO SIS Cabinets (MEA/AP Region) | DeltaV SIS

English867.1 KB.pdf07/14/22
