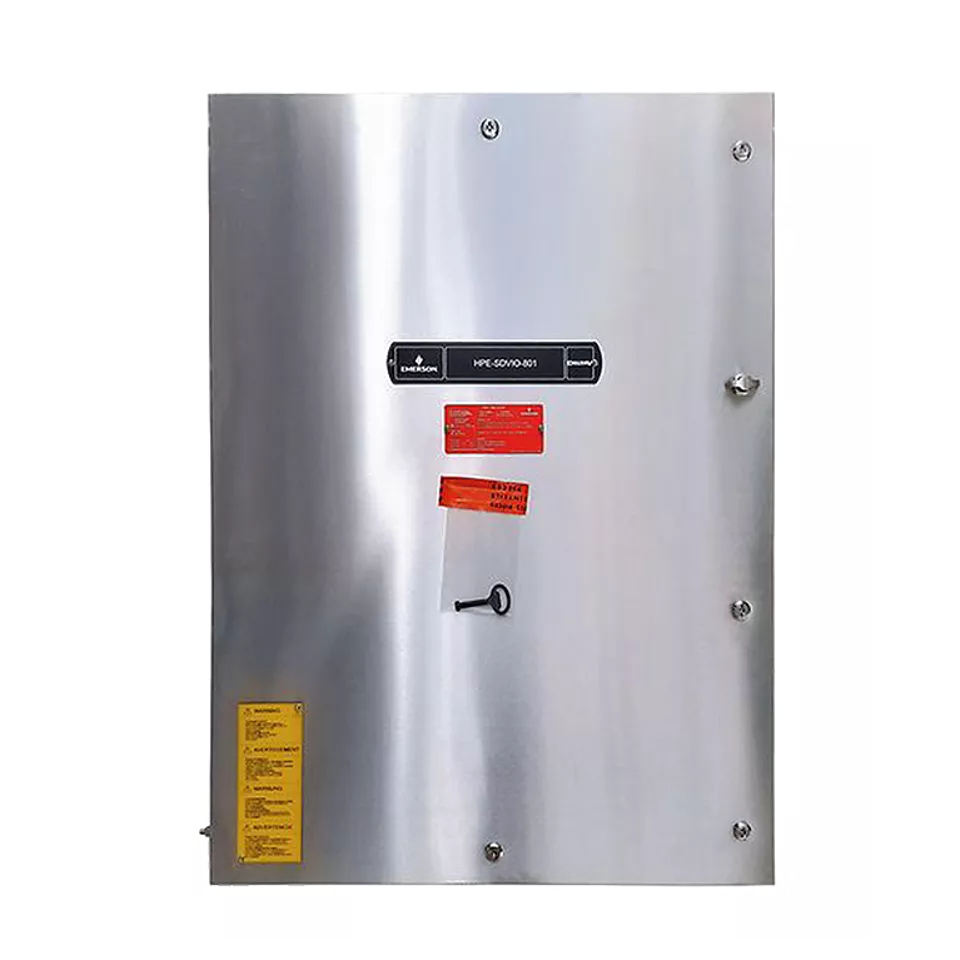

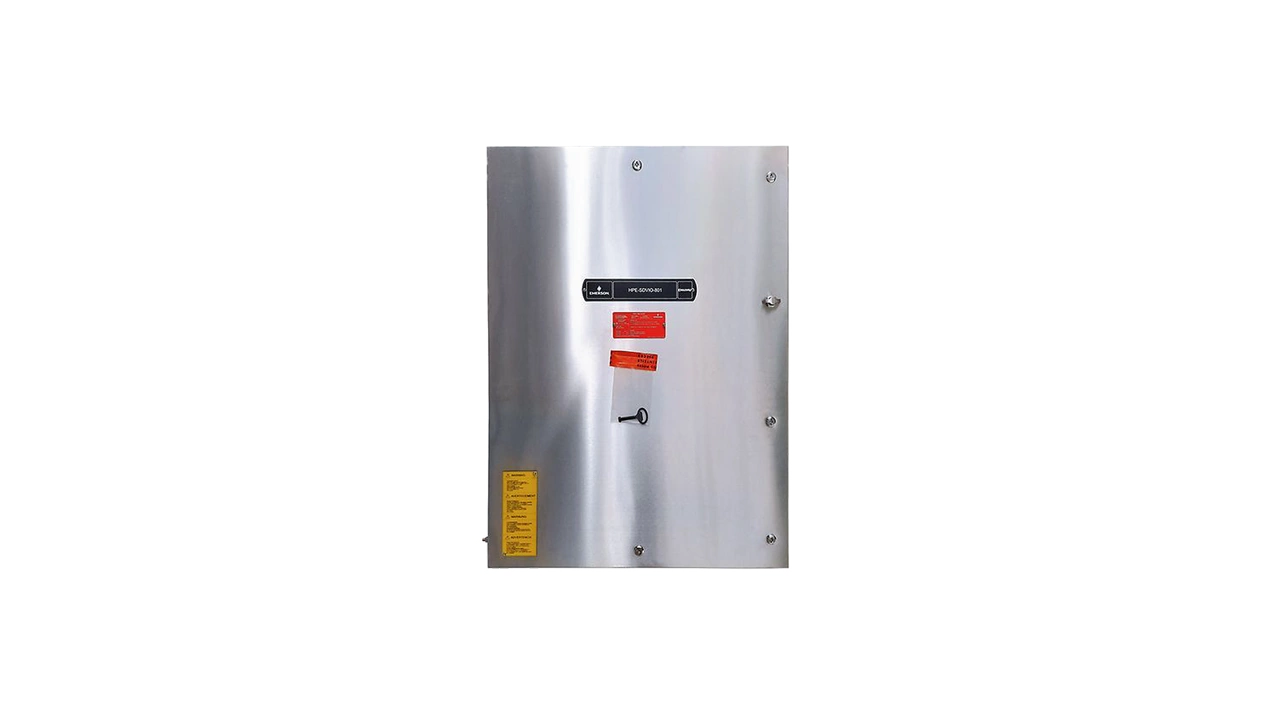

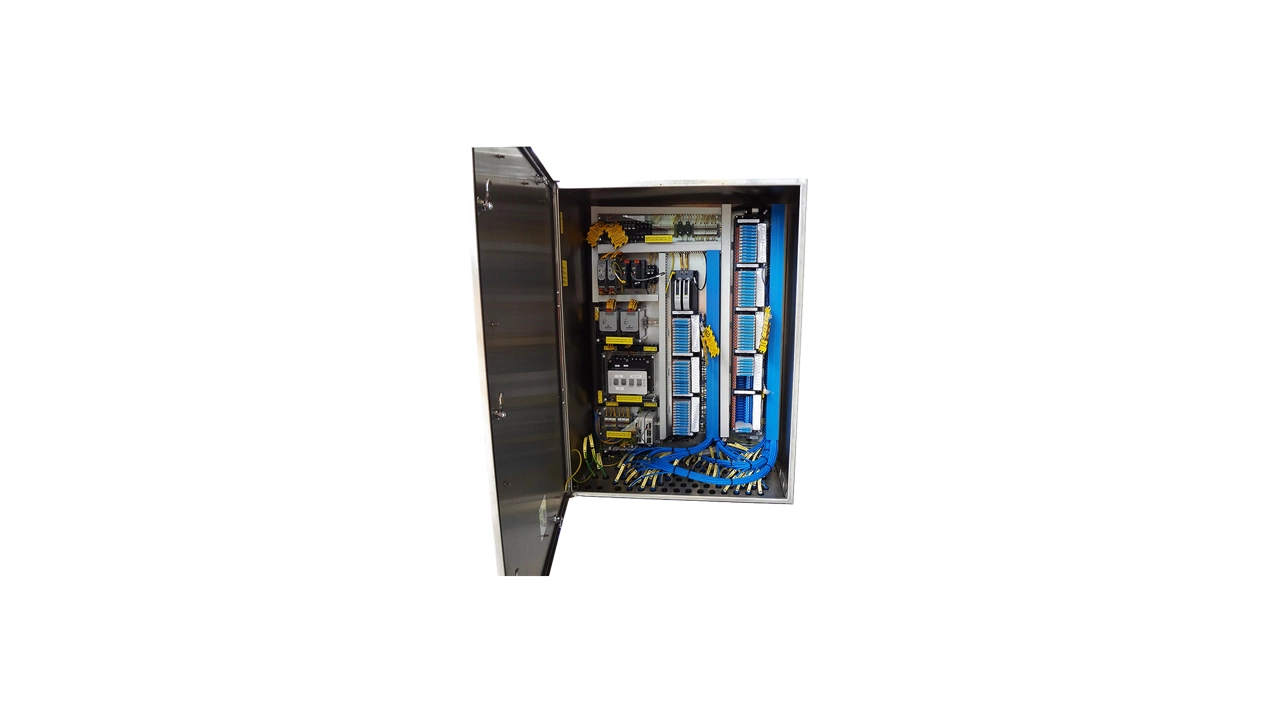

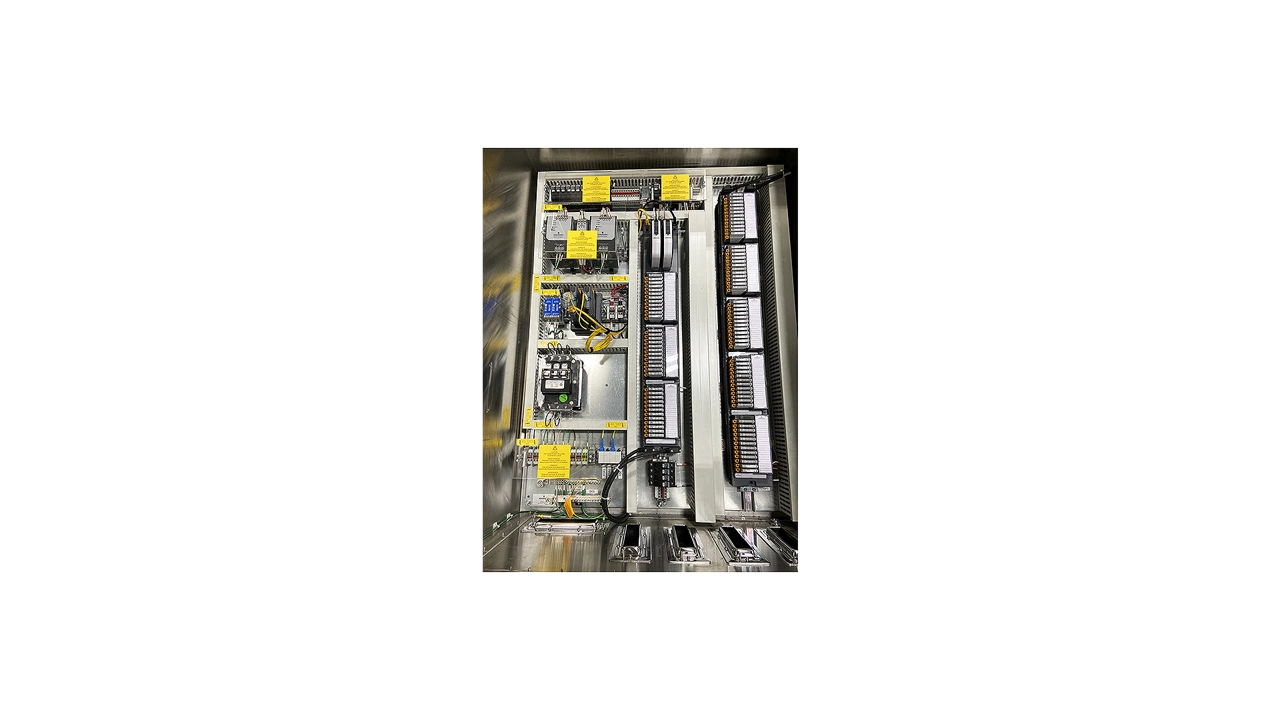

DeltaV™ CTO SIS Smart Junction Boxes
DeltaV CTO SIS Smart Junction Boxes provide pre- designed, fully certified (CE, IECEx, ATEX, Class 1 Division 2, NEPSI, CCC) an off-the-shelf solution for faster project execution and reduced installation costs. DeltaV CTO SIS Smart Junction Boxes are factory tested products with DeltaV SIS CHARM I/O system and ready for installation in the field. DeltaV SIS Electronic Marshalling eliminates traditional I/O design tasks and allows field wiring to start long before control strategies are finalized. DeltaV CTO SIS Smart Junction Boxes are designed for ordinary locations, hazardous areas and harsh environments, from extreme temperatures to corrosive gases.
Features
- Delivers Electronic Marshalling enabled by CHARMs technology
- Reduces system footprint
- Eliminate I/O home run cables
- Fully documented package
- Significantly reduce cabinet design engineering
Specifications
Material | Stainless Steel SS304 (316L Optional) Enclosure Thickness 2mm | |
Dimensions | 96 IO - 915mm (W) x 1220mm (H) x 475mm (D) | |

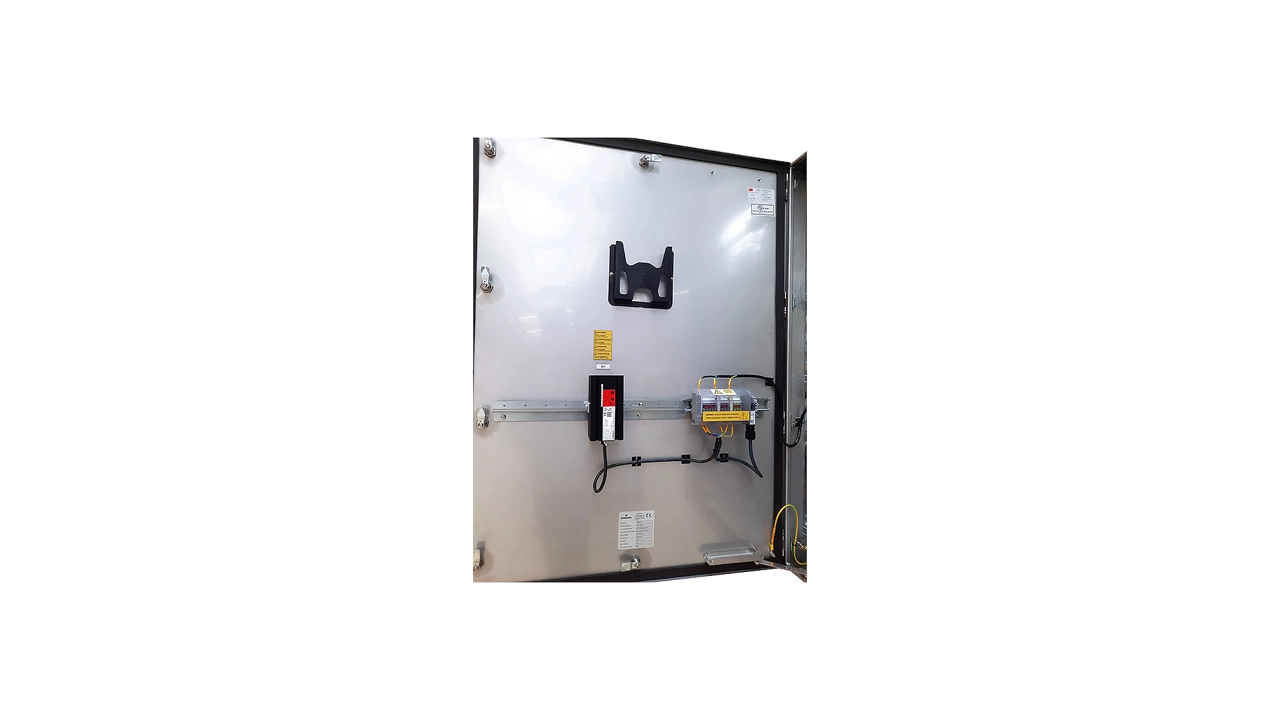

Access | Front- Single door, left hand hinged | |
Protection Category | IP 66/ IP64 – NEMA/ TYPE 4X | |
Cable entry | Bottom, single gland plate (Thickness 3mm) ( Cable Glands, Transit Frames Optional) | |
Weight | ~165 kg (may vary as per hardware added by option selection) | |
Power Requirements | Redundant distribution through Terminals (Optional Main Disconnect Switch)
| |
Control Network | Configured with one of the following control network systems: | |
IO Count / Type | Up to 96 CHARM IOs | |
Name Plate | Outside Door: Laser engraved plastic | |
Environmental Specification | Outdoor installation | |
Relative humidity | 5-95% (non-condensing) | |
Globally Certified | Global: IECEx | |
Shock | 10 g½-sine wave for 11 ms | |
Vibration | 1 mm peak-to-peak from 5 Hz to 16 Hz, 0.5 g from 16 Hz to 150 Hz |
