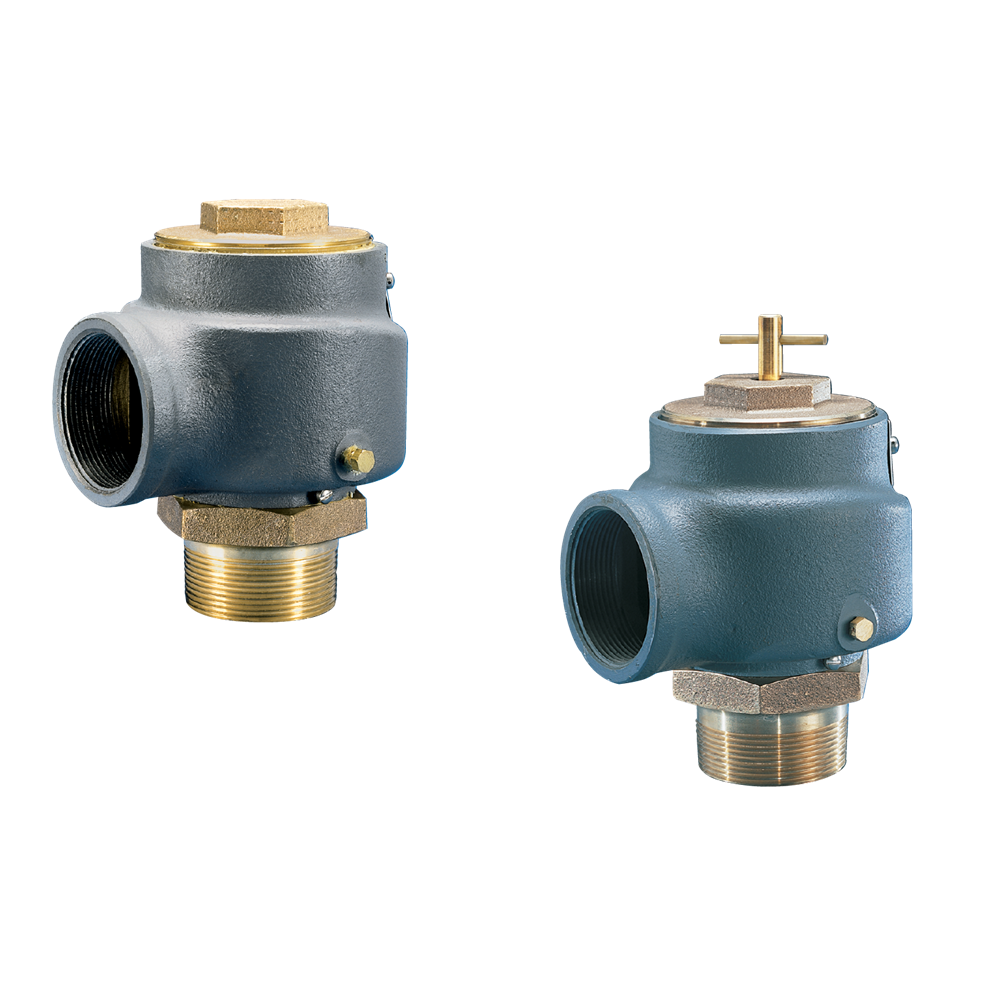

Kunkle Valve Models 215V/337 Safety Relief Valves
Cast iron vacuum relief and ASME VIII ‘UV’ air/gas safety valves. Both are PED certified for non‑hazardous gas.
主な特長
- Large nozzle design provides high capacity.
- Flat bronze valve seats are lapped for optimum performance.
- Warn ring offers easy adjustability for precise opening with minimum pre-open or simmer.
- Pivot between disc and spring corrects misalignment and compensates for spring side thrust.
- Model 215V has seal cap for vacuum service.
- Model 337 has 'lift-pin' lift device for easy manual testing.
- Bronze nozzle and disc as standard. Optional SS trim available.
- Each valve tested and inspected for pressure setting and leakage.
