Rosemount™ 3408 Level Transmitter Product Demo

Intelligent level measurement for faster start-up and easier maintenance

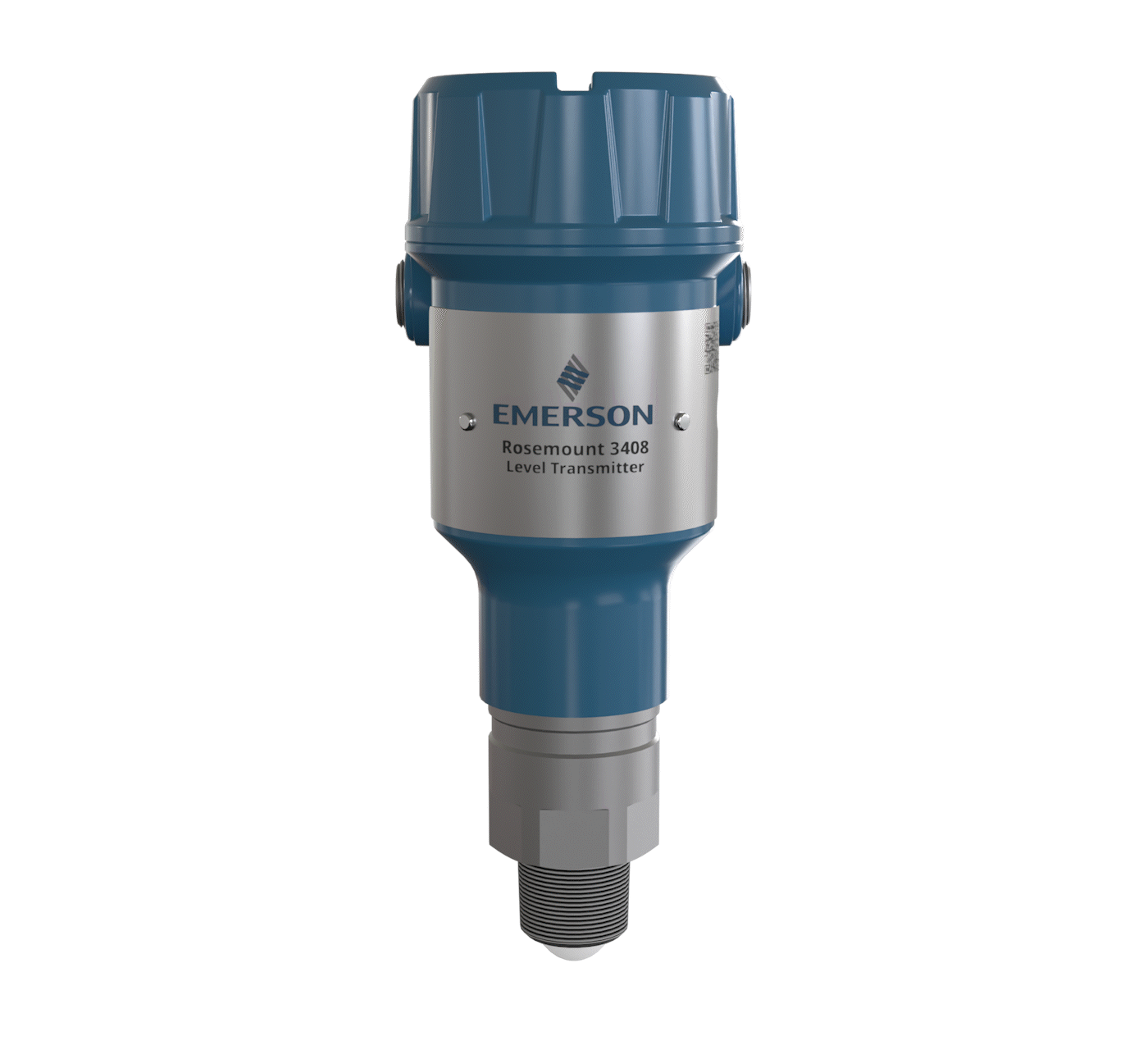

Streamline and improve level measurement across your process operations

No matter what the process, agility is key to keeping up with increasing demands. As processes are pushed to run at higher efficiencies and safety regulations toughen, it is important to find new ways to optimize your operations. Installing robust, safe, and reliable level measurement that is easy to use helps you make better decisions and exceed performance expectations.

Boasting Bluetooth® enabled functionality with advanced diagnostics and Smart Meter Verification, the Rosemount 3408 Level Transmitter expedites commissioning, delivers actionable insights and provides simplified, trouble-free operations.

Based on a modular design, the Rosemount 3408 provides accurate continuous level measurements, deploys quickly, and reduces maintenance costs. It is SIL2 certified, meets NAMUR recommendations, and can be used in hazardous locations, making it a perfect solution for a broad range of process applications.

The Rosemount 3408 is the new, smarter way to measure level and ensure you are ready for whatever comes next.

Explore our product in 3D

Lens Antenna

When should I select the Rosemount 3408 lens antenna?

The lens antenna is suitable for small-sized, threaded tank connections

What tank fittings is the Rosemount 3408 lens antenna suitable for?

The lens antenna is designed for small process fittings, with connection sizes ¾”, 1” and 1.5”

Process Seal Antenna

When should I select the process seal antenna?

The process seal is designed for flanged process connections and ideal for corrosive environments

What materials are the process seal wetted parts manufactured from?

The Rosemount 3408 Transmitter has all-PTFE wetted parts making it suitable for level measurement of corrosive liquids, including chemical applications

What tank fittings is the process seal antenna suitable for?

The process seal antenna is designed for RF and FF flanged process connection types up to 6”

ATAP

What does ATAP stand for?

ATAP stands for “Atmospheric Temperature and Pressure”

When should I select the Rosemount 3408 ATAP antenna?

ATAP antenna is designed for level measurement applications in open-air installations and non-pressurized tanks

How is the Rosemount 3408 ATAP antenna mounted?

The ATAP antenna is supplied with a threaded process connection and an optional bracket-mount for ease of installation

What tank fittings is the Rosemount 3408 ATAP antenna suitable for?

The ATAP antenna is compatible with 1.5” BSPP (G) threaded process connections

Spare Electronics

What are the benefits of the Rosemount 3408 spare electronics cassette?

During service and upgrade, the Rosemount 3408 electronics can easily be replaced without breaking the seal to the tank, for additional safety

Which electronics cassette should I order for my Rosemount 3408 model?

The single electronics cassette-type is suitable for all housings and hazardous approval types. This reduces complexity and inventory cost

How do I order the Rosemount 3408 spare electronics cassette?

The spare electronics cassette may be ordered via the website via the Emerson eStore/alternatively contact your local Emerson representative

Spare LCD

Which spare LCD type should I order for my Rosemount 3408 model?

The Rosemount Graphical LCD matches all housing types for quick and easy servicing and repair

How do I order the Rosemount 3408 spare LCD?

The spare LCD may be ordered via the website via the Emerson eStore/ alternatively contact your local Emerson representative

How It Works

The Rosemount 3408 uses 80GHz Frequency Modulated Continuous Wave (FMCW) and Smart Echo Supervision™ technologies, as well as smart algorithms to maximize measurement accuracy and reliability, even in small tanks and challenging fast-filling vessels.

FMCW technology deploys a continuous echo to maximize radar signal strength and produce a more robust and reliable measurement. And Smart Echo Supervision tracks all echoes, including those from obstructions vessels, and distinguishes them from the real product surface echo. This ensures the true product level is reliably and accurately reported.

Smart features help simplify each step in the product lifecycle.

Commission and configure remotely with Bluetooth® wireless technology. Powerful diagnostics provide early alerts when it is time to schedule maintenance and the on-board memory provides insight into the past 3 days of measurements. Echo curve profiles and alerts facilitate intuitive troubleshooting.

The Smart Echo Level Test enables proof-testing from the control room without changing the actual level and Smart Meter Verification provides a documented health check without interrupting the process.

With only two exchangeable electronic parts, complexity and inventory is reduced. The pre-calibrated cassette is suitable for all hazardous location approvals.

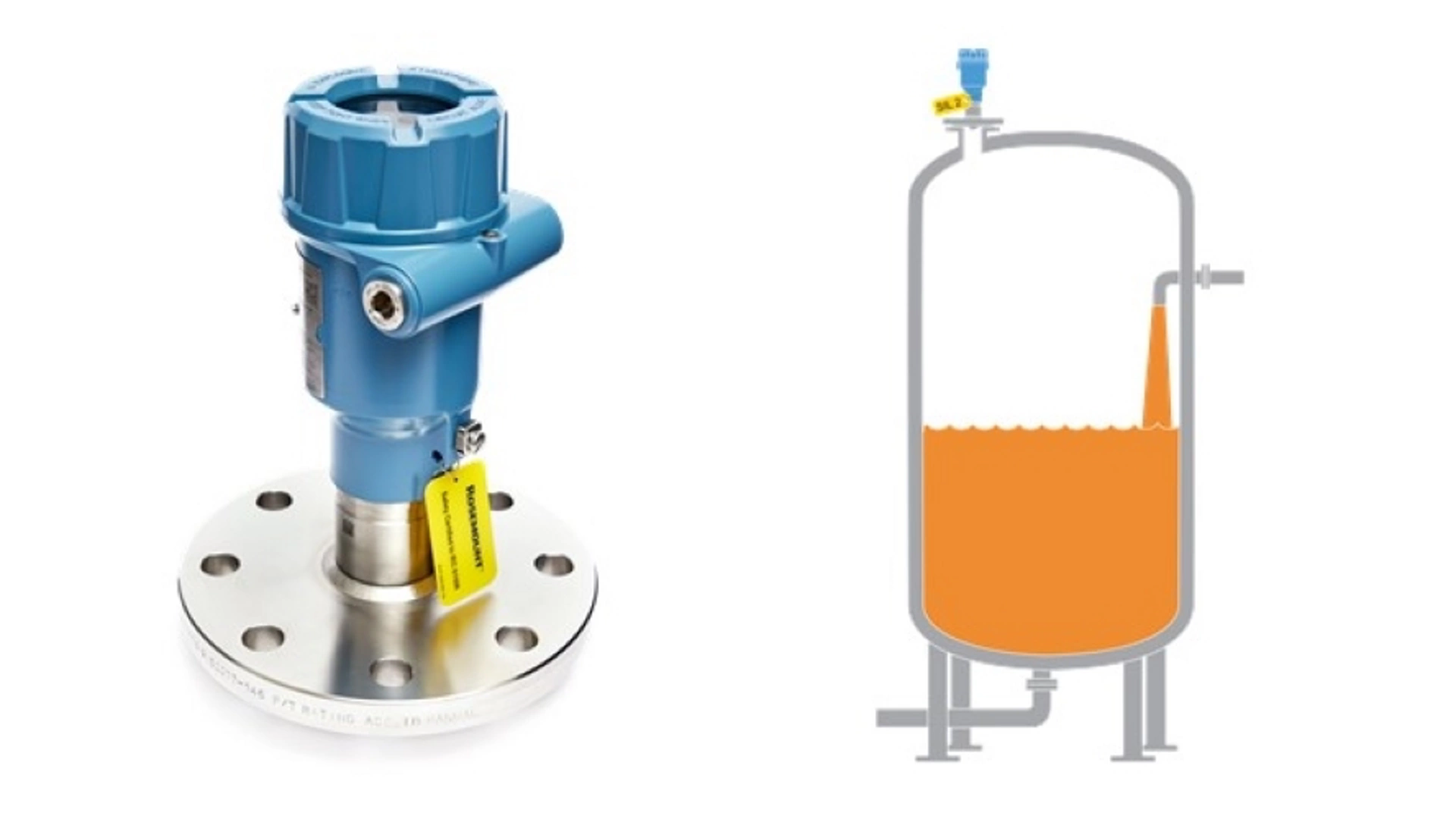

Keep people, plant assets, and the environment safe with safety certified instrumentation and remote proof-testing.

The Rosemount 3408 Level Transmitter is safety-certified to SIL2 according to IEC61508 for use in critical applications. It can be proof-tested remotely from the control room whilst left in-situ, keeping personnel safe. The Smart Echo Level Test lets you test in a real tank environment without changing the actual level, for a more convenient and safe test procedure.

Bluetooth® wireless technology lets operators communicate with the device remotely, keeping people off tank roofs.

The on-board diagnostics suite reassures users that processes are under control and that the device is ready to perform in any situation.

Signal Quality Metrics

• Early detection of abnormal conditions such as antenna contamination/ build-up or sudden loss of signal strength.

• Signal Quality is available as output variable with user configurable alerts.

Data Historian

•The measurement and alert log holds records of the last three days of level readings and echo curve profiles, as well as the 50 last alert events

Work smarter, faster, and more efficiently. Discover a simpler process for performing routine tasks without need for a physical connection.

The Rosemount 3408 Level Transmitter with Bluetooth® enabled functionality allows you to access your level instrument from your mobile device, helping you save time and maximize efficiency when commissioning and troubleshooting your device.

How to Videos

How to Install the Rosemount 3408 Non-Contacting Radar Level Transmitter
