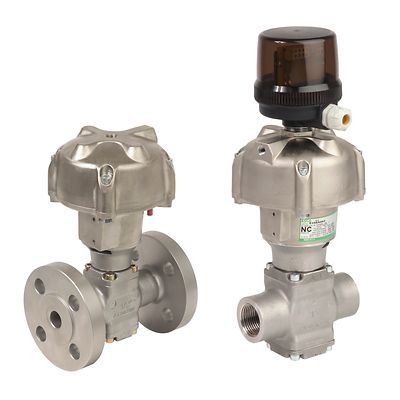

ASCO™ 8298B1380TA0000

Body Material

Stainless Steel

Flow (Cv) / Flow (Kv)

4.05 / 3.50

Function

2/2 Normally Open

Pipe/Port Type & Size

NPTF 1/2

Product Type

Pressure Operated Valve

Valve Actuation

Pressure Operated

Media

Steam; Water; Light Oil; Air, Inert Gas

Min to Max Operating Pressure (Air)

0 - 40 bar

Min to Max Operating Pressure (Water)

0 - 40 bar

Min to Max Operating Pressure (Light Oil)

0 - 40 bar

Min to Max Operating Pressure (Steam)

0 - 40 bar

Product Weight

1.80 kg

Min to Max Ambient Temperature

-20 - 180 °C

Min to Max Fluid Temperature

-10 - 180 °C

Orifice Size

15 mm
