AVENTICS-608011210

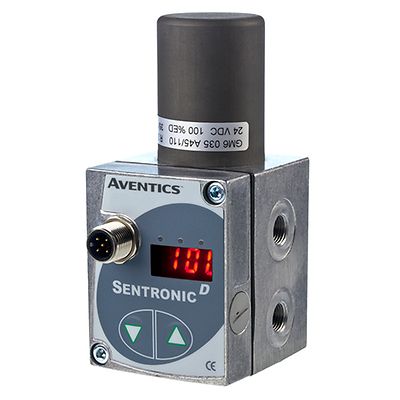

AVENTICS™ 608011210

製品概要

The AVENTICS Series 608 SentronicD is a 3-way, direct-operated proportional valve with digital control for air or neutral gas. Its fast response times and high sensitivity make it the perfect fit for applications requiring highly precise pressure control. Valve control loop parameters are easily configured and optimized for specific customer requirements using AVENTICS Data Acquisition Software (DaS) and a PC connection. The valve is ideal for automotive and tire, analytical and diagnostic equipment, and bottling applications.

Body Material
Light Alloy
Flow (Cv) / Flow (Kv)
0.50 / 0.43
Function
3/2 Normally Closed
Pipe/Port Type & Size
G 1/8 (ISO 228/1)
Product Type
Solenoid Valve
Media
Air, Inert Gas
Min to Max Operating Pressure (Air)
0 - 10 bar
Product Weight
0.56 kg
Coil Class
H
Min to Max Ambient Temperature
0 - 50 °C
Min to Max Fluid Temperature
0 - 60 °C
Orifice Size
4 mm
Voltage
24 Volts DC
Watt Rating
21 W
Media Type
Air
Min - Max Operating Pressure (Air)
0 - 10 bar
Regulation Range
0 - 10 bar

機能

  • インテリジェントデジタル通信により、簡単な操作が可能に
  • ダブルループ制御により、流量、力、速度、RPM、温度などのプロセス変数を簡単に設定できます
  • 統合されたディスプレイにより、バルブの状態を簡単に監視できます
  • DaSソフトウェアにより、個別設定が可能で、制御パフォーマンスを最適化できます
  • 真空サービスと最大 12bar(174 psi)バージョンが利用可能
