AVENTICS-G647ABBK6JA000Q

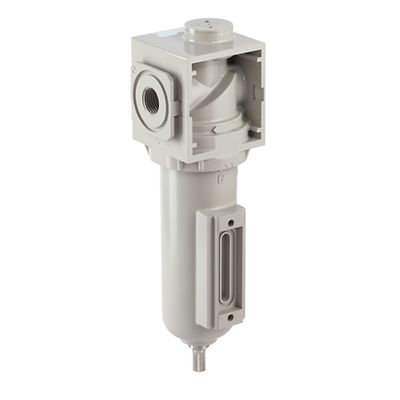

AVENTICS™ フィルター, シリーズ 647 G647ABBK6JA000Q

製品概要

647-ABB-K6J-A00-0Q

コンポーネント
フィルター
ポート
G 1
フィルター孔幅
25 µm
定格吐出 Qn
4250 l/min
結露排水
手動
作動圧力(最小)
0 bar
作動圧力の最大値
12 bar
最少周囲温度
-40 °C
最高周囲温度
70 °C
中間
圧縮空気
重量
1.199 kg
材質 ハウジング
アルミニウム
材質 ガスケット
ニトリル・ブタディエンゴム
材質 フィルターインサート
ポリエチレンが焼結した
材質 結露排水
高級鋼

機能

  • The Series 647 railway filters are designed for use with air or inert gases in railway applications
  • Wide temperature range from -40°C to +70°C (-40°F to +158°F)
  • Meets railway specification for fire safety, shock and vibration, and corrosion resistance
  • Particulate and coalescing filters are available
  • Compact, lightweight construction
